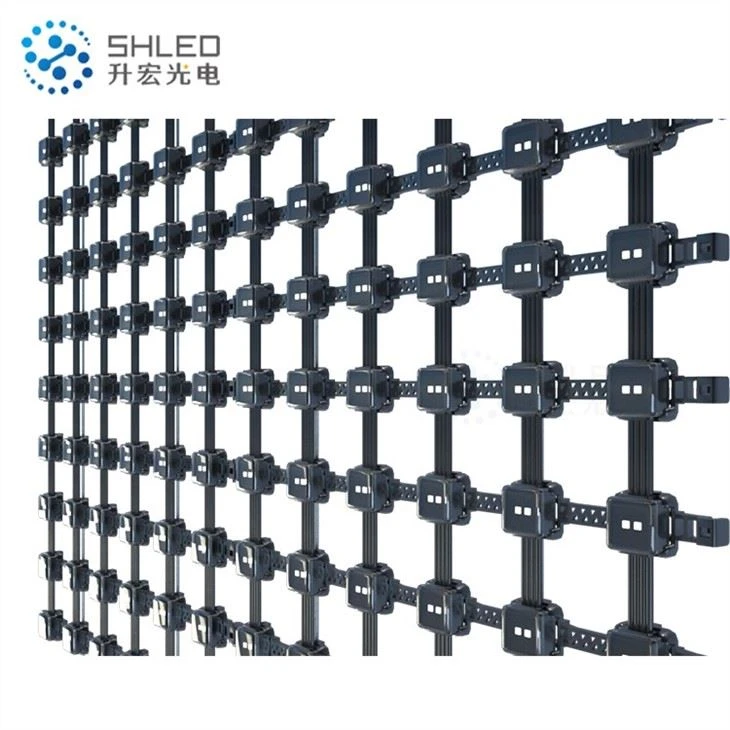

Led mesh screen Led display easy to maintain, easy to achieve customized size, for Outdoor high brightness building curtain display.
Feature
A variety of outsourcing colors can be customized.
Adopts High lelvel black glue to guarantee whole led screen to be waterproof, dustproof.
Can be flexibly and freely spliced, so that the screen body and the building perfectly fit.
Each module adopts snap-in design, easy to install and disassemble.
Simple installation structure.
DC12V Low voltage can prevent insufficient power supply.
The protection grade reaches IP67,has a long service life.
Specification
Model: | E10A02 |
Voltage: | DC12V |
Power: | 0.7W |
LED Type & Qty: | SMD 3535 RGB * 2pcs |
Chip Type: | UCS5603A |
Control mode: | SPI |
Shell Material: | Engineer plastic/PC |
Gray Level: | 12 Bit 4096 grade |
IP Grade: | IP67 |
Brightness: | ≥4800CD |
wavelength: | R : 615-630nm G : 525-545nm B : 460-480nm |
Chip Brand: | Epistar |
Lifespan: | ≥30000H |
Beam Angle: | ≥120° |
Work Temp: | -20℃~+60℃ |
Store Temp: | -40℃~+75℃ |
Application
Suitable for outdoor glass curtain wall,media facade,building construction,large shopping mall exterior,sand large shopping mall exterior etc.
Project Case
Size chart
Connection Diagram
Reliability Test Item And Conditions
Test Item | Test Conditions | Test Duration | Judgement standard |
Power Test | Input Voltage 12V, Ta=25℃±5℃ | 30min | Wattage 0.65-0.75W |
Temperature Test | Input Voltage: 12.5V with white color | 30min | ≤60℃ |
Drop Test | Free fall at 1.2m height | 10 Cycles | No damage to the appearance, normal function |
Thermal Shock | -40℃(30min) ~ 100℃ (30min) | 200 Cycles | No damage to the appearance, normal function |
Salt Spray Test | 5% NaCl | 72H | The material is non-corrosive and functional |
Anti-UV Test | UV-A, 350-400nm, 60℃ | 72H | The material is free from aging and discoloration, functioning normally |
Switching Cycle Test | ON 25 second / OFF 5 second, ON/OFF cycle | 48H / 5000 cycle | Functioning normally |
Voltage Test | DC 500V | Once | Functioning normally |
ESD Test | 3000V | Once | Functioning normally |
High and Low Temperature Test | -30℃~65℃，RH 85% | 72H | Functioning normally |
Tensile Test | Input/output line, pull force 20KG or more | Once | The wire is not broken and functions normally |
Vibration Test | Horizontal and vertical direction | 4H | Functioning normally |
IP Rating | IP68 0.5m underwater | 48H | Functioning normally |
Flame Retardant Rating | Refer to UL94-V0 standard | 10 Cycle | Self-extinguishing from the fire, no burning matter falling |
